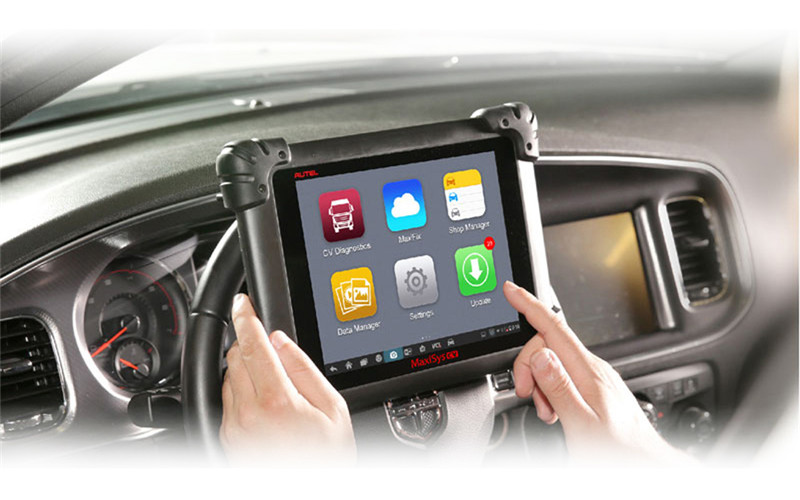

Autel Maxisys 908 CV Diagnostic Scanner Full System ECU Coding MS908 CV for Heavy Duty Functions of codes, live data etc

As a new member of Autel’s MaxiSys family, the MaxiSys CV is built on the powerful MaxiSys 908 platform and provides a comprehensive disgnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys CV is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.

Features

Hardware
Extraordinarily powerful Cortex-A9 quad-core processor
9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 32GB Solid State Drive for better performance
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
Unique shop tough ergonomic design features strong rubber protection and housing;
Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
The VCI connects to the main unit wirelessly with up to 230 meters working range

Software
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Configures display options, sets triggers, records and playbacks results with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases

Specifications

Operating System Android™ 4.0, Ice Cream Sandwich
Processor Samsung Exynos Quad-Core Processor 1.4GHz
Memory 2GB RAM & 32GB On-board Memory
Display 9.7 inch LED capacitive touchscreen with 1024x768 resolution
Connectivity • Ethernet: RJ45 Ethernet Connection • WiFi (802.11 a/b/g/n) • USB: 2.0 • BT v.2.1 + EDR • SD Card (Support up to 32GB) • HDMI
Camera (rear) Rear-facing, 5.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output • Microphone • Dual Speakers • 4-Band 3.5 mm stereo/standard headset jack
Power and Battery 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp. -10 to 55°C (14 to 131°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Housing Strong plastic housing with protective rubber boot
Dimensions 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.)

Protocols SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL
