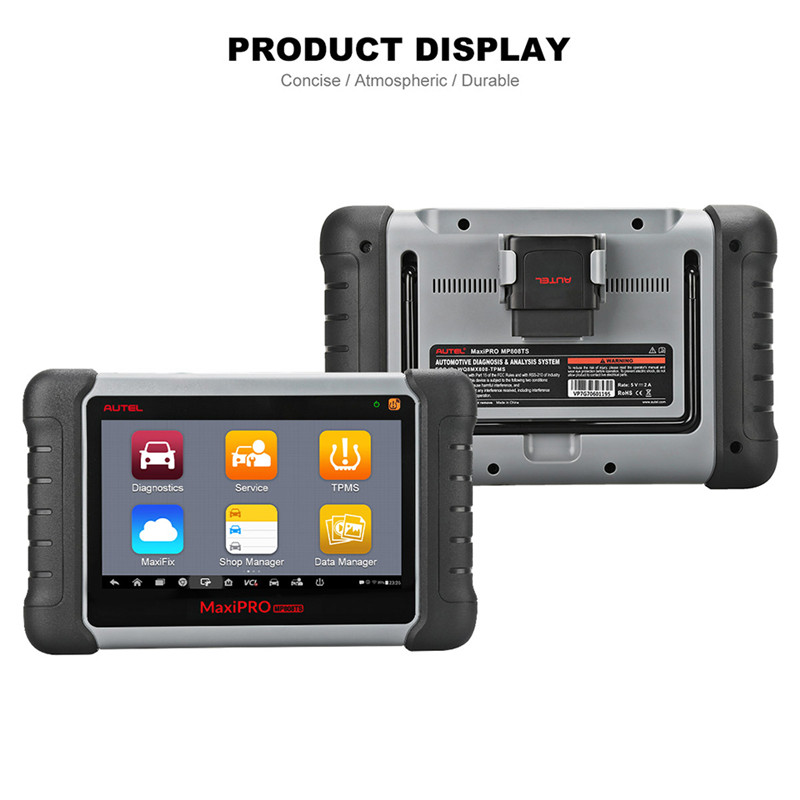

Autel MaxiPRO MP808TS Automotive Diagnostic Scanner with TPMS
Service Function and Bluetooth (Prime Version of Maxisys MS906TS)
Shares the same features as DS808/MS906. It is a combination of
advanced diagnostics and complete TPMS functions
When it comes to ultra-portability, MaxiPRO MP808TS is your perfect
companion. Featuring a fast quad-core processor, MP808TS offers
maximum convenience and swift diagnosis. The intuitive user
interface makes using the device effortless through a 7-inch LCD
touch screen that displays at 1024 x 600 quality. Together with the
ability to quickly read and clear Original Equipment Manufacturers
(OEM) enhanced codes for TPMS module of the majority of the makes
and models on the market, MP808TS provides you with superior
special functions for TPMS services with ease.
All Systems Diagnoses of this Diagnostic Tool
By establishing a data link to the electronic control units (ECUs)
of the vehicle being serviced directly, MP808TS can access the ECU
for various vehicle systems, such as Engine, Transmission, ABS,
Body, Chassis and more, together with smart technology to
facilitate your diagnoses.
1.Auto VIN scan function enables instant vehicle make, model and
year identification in just one touch
2.Retrieves module information from Body, Chassis, Powertrain,
Information & Communication of vehicles
3.Supports to read&erase codes, display freeze frame and live
data, perform active tests and Adaptations
4.Supports four-mode live data processing for your convenience
–viewing, printing, storing, and playback
5. Full-screen waveform graphing analysis of up to three system
parameters with trigger-type recording modes
Complete TPMS Services of this Diagnostic Tool
MP808TS, same as other tpms tool, provides comprehensive TPMS
services for technicians to quickly solve TPMS related problems,
which can be divided into 4 parts:
1.Check by embedded antennae activating 98% of all known TPMS
sensorsto view data
2.Diagnoses TPMS ECU for complete health check with specific DTC
definitions
3.Programsnew MX-Sensor to replace OEM sensors by 4 methods
Copy by Activation – Program the sensor ID retrieved from activated
sensor
Copy by OBD – Program the sensor ID retrieved from TPMS ECU
Copy by Input – Manually input the original sensor ID for
programming
Auto Create – Create a random ID to program MX-Sensor
4.Perform OBDII Relearn by writing sensor IDs into ECU for sensor
recognition; Displays manufacturer-specific TPMS Relearn
procedures.
5.TPMS by OEM Part No- this ideal method allows you to program up
to 20 sensors at the same time.

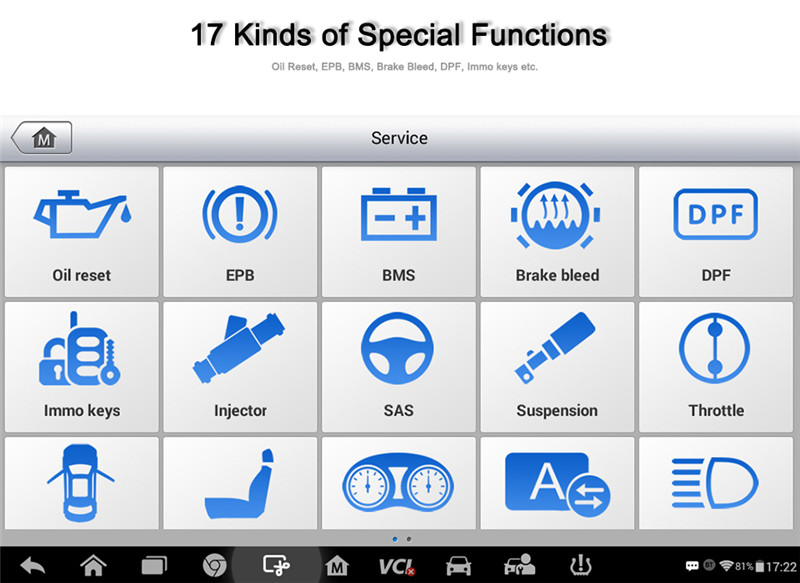

Professional Repair Solutions
MP808TS offers quick access to the vehicle systems for various
maintenance tasks like Oil reset, SAS calibration, IMMO Keys, ABS
Bleeding and services of EPB, BMS, and DPF etc. Enter correct
values or data, perform necessary actions, to complete selected
service operations.
Bluetooth Maxi-VCI Mini
Latest compact size wireless Bluetooth MaxiVCI Mini OBDII
Connector, transmits vehicle data to the tablet without a physical
connection, giving mechanics greater service mobility and easier
TPMS sensor interaction while the tablet is still OBDII connected
to the vehicle for data transmission.
WIDE COVERAGE: The automotive scanner is compatible with most of
the domestic, Asian and European vehicles, 1996 and newer.
Supports OBD II Full diagnostic functions:
US cars after 1996
EU cars after 2002
Asia cars after 2008
Japaness cars after 2005
Note: If you are not sure wheater your car is supported or not,
please feel free to contact us, we will check and teach you how to
check it.
CONVENIENT UPDATE: Remote control technical enables support to
quickly repair or update tool
Superior User-Friendly Designs
7-inch Full HD screen– easy view;
7-hour battery life – anytime use;
Quad-core processor – fluent operation;
One-stop multitasking –time saving;
MaxiFix online community– tips sharing;
Instant tech support–quick solutions
Multi-Language :English, German, Spanish, Portuguese, Dutch,
French, Italian.Korean, Japanese, Russian ,Polish,Swedish for
optional . after you make order, please contact with seller about
the language.
