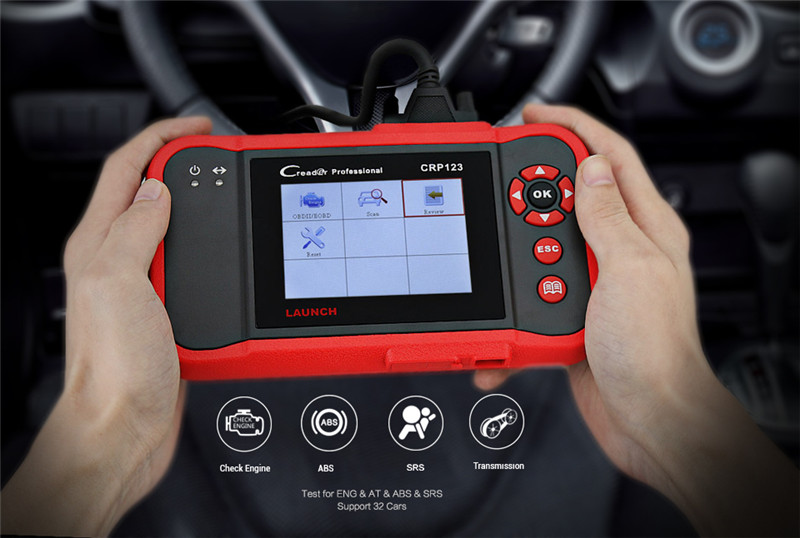

Launch Professional OBD2/EOBD Scanner Creader CRP123
Introduction:

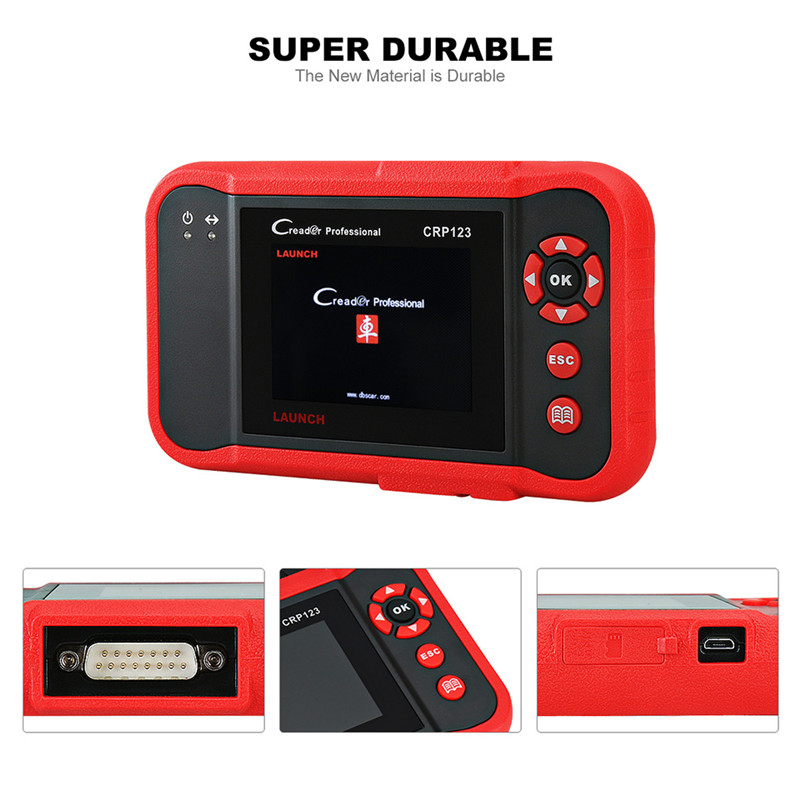

Featuring the unique and 3.5 inch TFT color display, the CRP 123
OBDII/EOBD code reader supports all 10 modes of OBDII test for a
complete diagnosis. It is truly the ultimate in power and
affordability , allowing users to do their jobs faster. Graph,
Record, Replay data and troubleshooter code tips help users to save
diagnosis and repair time.
The CRP123,the most advanced and multifunctional code reader
powered by its exclusive technology, are designed for technicians
to troubleshoot four systems for most of the major vehicle on the
road today. Featuring the unique multifunctional keys and 3.5?? TFT
color display. Launch?s new CRP123 offers the same features and
functions as the CRP122, but come with the added benefits of read
DataStream for 4 systems and vehicle diagnostic report.
Multi-Language: English/ French/ Spanish/ German/ Russian/ Japanese/ Portuguese
Fecture:
1. 3.5 TFT color display, Higher resolution, sharper colors
2. Works on ALL 1996 and newer vehicles (OBDII& CAN)
3. Retrieves generic (P0, P2,P3 and U0), manufacturer specific (P1,
P3 and U1) codes, and pending codes
4. Easily determindes the cause of Check Engine Light
5. Turns off MIL, clears codes and resets monitors
6. Displays DTS definitions on the 320*480 TFT corlor screen
7. Views freeze frame data
8. Displays monitor and I/M rediness status
9. Reads live PCM data stream
10. Displays live O2 sensor test data
11. Performs modules present test
12. Enhanced OBD II Mode 6
13. Graphs Display, Data Record& Replay and DTCs tips guide users
to the root cause of trouble code faster,
14. saving diagnosing and repari time
15. Retrieves vehicle information (VIN, CIN and CVN )
16. Support large extension memory card
17. Multilingual menus, DTC definitions- English, Chinese, etc
18. Extremely easy to use and highly reliable
19. Internet upgradeable
20. Prints data via PC
Item Parameter:
Screen: 3.5 inch, 320*480 TFT LCD true color display
Input voltage: 9-18V
Connection: standard 16 PIN OBD diagnostic interface
Working temperature: 0-50°C
Storage ambient temperature: -20 to 70°C
Dimension: 136*73*22(mm)
Weight: <350g
Note:
CRP123 has 2 main functions:
1. OBDII ENG diagnostic:
This function works for cars with OBDII protocol, reads and clears
error codes.
How can you check that if your car works with OBDII protoco?
1) OBDII cars includes:
USA cars after 1996; Europe cars after 2002; Aisa cars after 2008,
Japan cars after 2005;
2)If you were not sure if you car is included or not, please leave
us the information of your car, we will check for you.
Leave as this: car brand, model, year.
2. ENG/AT/ABS/SRS testing
When we say "car supported list", we mean the car testing list for
4 system(ENG/AT/ABS/SRS). You will see the car supported list
below, please remember that , that just for ENG/AT/ABS/SRS testing.
And for ENG/AT/ABS/SRS testing, it just supports the cars after
2005.
The newest Function Improvement:
For FIAT Diagnostic Software for CRP Series V11.31
For FORD Diagnostic Software for CRP Series V11.40
For NISSAN Diagnostic Software for CRP Series V10.20
For KIA Diagnostic Software for CRP Series V10.40
For Kia Diagnostic Software for X-431 Series V10.30
For SUBARU Diagnostic Software for X-431 Series V10.07
For USAFORD Diagnosis software V11.20 for CRP
For CRP123 USAFORD Diagnostic Software
