The Newly Added functions on Passenger Car Software of LAUNCH X431
V:
1. GPF Regeneration;
2. High Voltage Battery Health Test;
3. Transport Mode;
4. Intelligent Cruise control;
5. Engine Power Balance Monitoring;
6. Stop Start
8. ECU reset
9. FEM matching
10. Clutch matching
11. Turbocharging matching (Available after selecting a system,
always keep growing).
CAN FD New Protocols For GM GMC Chevrolet Cadillac ect after 2020
and other New cars (Optional )
AutoAuth for FCA, SGW (Account needs to be purchased separately)
ect ...

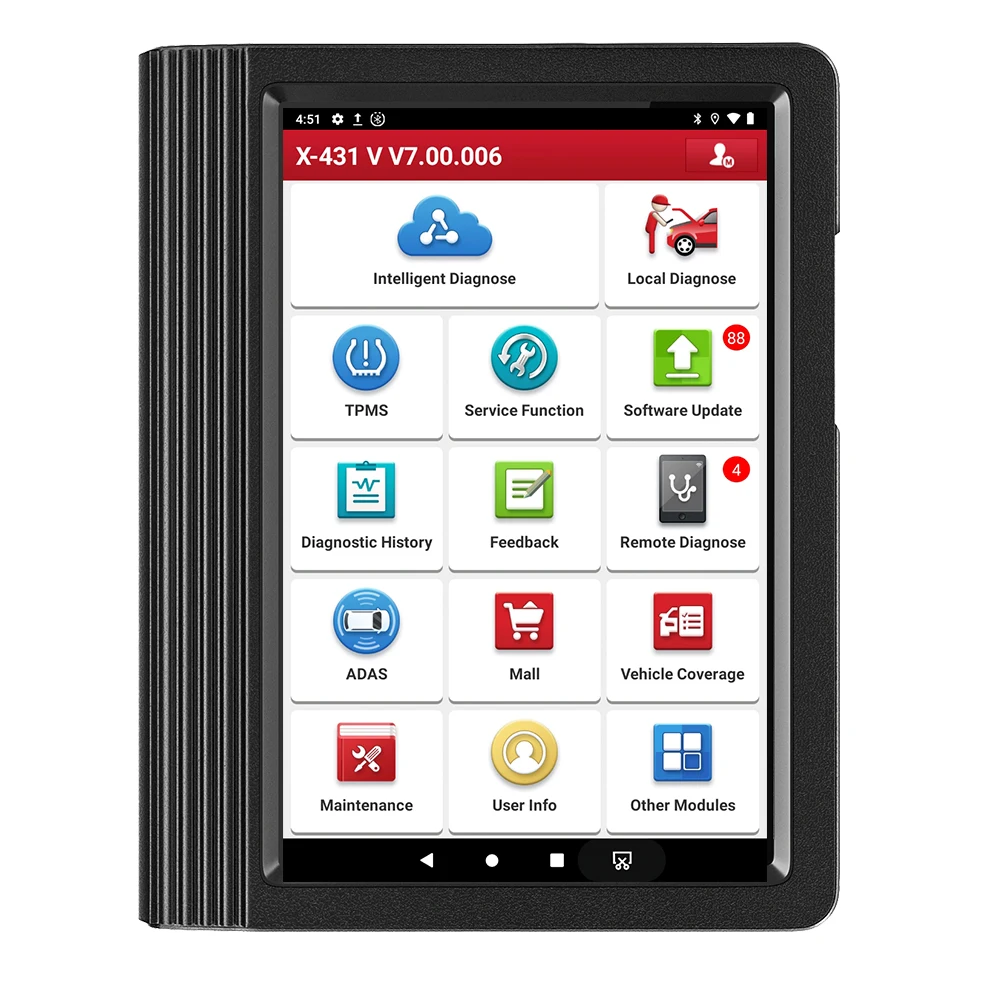

2024 Elite - LAUNCH X431 V 4.0 Car Diagnostic Tools ,The preferred
choice for millions of technicians
1. OE-Level All System Diagnosis + 37 More Reset Functions
|
2. ECU Coding + Active Test (Bi-Directional Control )
|
3. V-A-G Guided Function
|
4. FCA AutoAuth Access
|
5. 2 Years Free Update. After that, you can still use it, it will
not be locked.
|
6. 5 Years Warranty for any Quality Problems and Lifetime Free Tech
Support.
|
7. OE-Level car coverage. 100+ car brands, 20,000+ models from the
US, European, and Asian car markets; still expanding.
|
8. 22 Kinds of Languages Support.
|
9. Compatible with X-PROG3, X-431 TSGUN, BST360, VSP-600, ADAS,
WIFI Printer etc.
|
10. X-431 FIX Available to buy. |
Lifetime Free use + 2 Years Free Update
Beside, After 2 Years, device will not lock, you can continue to
use all the functions as normal , but if need update again , need
to buy Renewal card
25 Language Supported
English, French, Spanish, German, Russian, Korean, Japanese,
Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified,
Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian,
Swedish, Chinese Traditional...
Warm TIP: The factory presets the language and the model software in
English. After switching the language, customer needs to
re-download the model software in the corresponding language.
OE-Level Full System Diagnosis
This LAUNCH diagnostic scanner can establish a data link to all
systems and subsystems of the vehicle being serviced to:
-Retrieve ECU information of the tested control units including
unit type, version numbers, and other specifications, etc.
-Read & erase DTCs to locate problem areas and clear the codes.
-View Live Data of each parameter item.
The following is a list of modern vehicle systems that this scan
tool can get access to:
-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding /
ABS / Cruise Control / Instruments / Self Leveling Suspension
systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body
Systems / Electronic Power Steering & Motor Assisted / Power
Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio
Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top /
Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon
Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat
Memory / Oil Life Service Reset / Sliding Doors / Electronic
Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi
Function Steering Wheel / Aux Heating / Electronic Parking Brake /
Clutch Electronics ... and more.
This comprehensive scanning process is able to locate the faulty
systems and retrieve the DTCs related easily. So you can work on
all parts of the vehicle systems to enhance the performance, save
energy, reduce emissions, and everything else.
Advanced Functions
Online Coding: Get the code from the server directly over the
network and write it to the new module.
Offline Coding: Obtain the original code,and then writing it to the
new ECU manually.
Ofline Programming: Program ECUs to meet vehicle variants, such as
leff-hand drive or right-hand drive.
Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat
etc.
Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW
/ GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia
/ Subaru etc.
Power balance Test: Cylinder power balance testing can help uncover
hidden engine issues related to engine misfires, lack of power or
just a poor running engine, which is commonly missed with other
tests. So, cylinder power balance testing, is one of the best and
easiest ways to find the source of a engine misfire. Furthermore,
cylinder power balance testing is often used along with a cylinder
compression and cylinder leakage tests to further pinpoint the
problem.
Cylinder Balance test/Cylinder leakage test/Cylinder Pressure
variations/Relative Compression Test.
Audi /VW firmware protection cancel features: One feature most
techs really want is to remove firmware protection from their cars.
This feature helps mechanics replace car parts. Carry out car
modifications.
Active Tests /Bi-Directional Control
this LAUNCH bidirectional scan tool can output commands to a
vehicle’s ECUs, read the ECU data, and monitor the operation of the
actuators. Through active tests on certain components, such as a/c
fan, inside mirrors, headlamps, windows, and horns, this
bidirectional scanner will let you quickly know whether a specific
system, component, or subsystem is functioning properly or not,
helping you locate the car issues precisely.
ECU Coding - Help the newly replaced ECU/module to work properly
Why does the car not work properly after replacing the ECU/module?
When the ECU/module is damaged, replacing it with a new ECU/module
is necessary. After processing the replacement, you must follow the
manufacturer's strict procedures for matching, learning, coding,
and even programming it to get the car to run properly. Otherwise,
the car could not
IMMO Keys
Compatible with Volkswagen / Audi / Skoda / Seat etc.
Disable lost keys to prevent the car from being stolen, add new
keys, and match replaced IMMO module. For more advanced IMMO
programming functions, X431 V+ can use with PROG 3 key programmer.
37+ Reset Service, Keep increasing
1.Oil Lamp Reset Service – Reset the oil life systems every time
the oil and oil filter are changed;
2. Injector Coding – Code new injector numbers to replace the
previous one when fitting the new injectors or after the
replacement is completed;
3. EPB Reset – Deactivate and activate the brake control system,
assist with brake fluid control, open and close brake pads, etc.;
4. SAS Steering Angel Sensor Reset – Perform steering angle sensor
calibration and clear records;
5. BAT battery service – Evaluate the battery charge state, monitor
the closed-circuit current, register the battery replacement, etc.;
6. ABS Bleeding – When the ABS contains air, the ABS bleeding
function must be performed to bleed the brake system to restore ABS
brake sensitivity;
7. Throttle Adaptation – Initialize the throttle actuators so that
the “learned” values stored on ECU are returned to the default
state;
8. TPMS service – Tire pressure resetting is required to be
performed after maintenance is performed;
9.Gear Learning – Perform gear learning for the car when the engine
ECU, the crankshaft position sensor, or the crankshaft flywheel is
replaced;
10. IMMO Reset - To prevent the car being used by unauthorized
keys, the anti-theft key matching function must be performed so
that the immobilizer control system on the car identifies and
authorizes remote control keys to normally use the car. When the
ignition switch key, ignition switch, combined instrument panel,
ECU, BCM, or remote control battery is replaced, anti-theft key
matching must be performed.
11. AFS Headlamp Reset: Initialize the adaptive headlamp system.
12. Sunroof Initialization: The sunroof needs to be reset when the
sunroof control unit have communication problem or changed.
13. Suspension Reset:Adjust the vehicle body height sensor for
level calibration.
14. Gearbox Reset; 16. Tire Reset; 17. A/F Reset; 18. Adblue
Reset(Diesel Engine Exhaust Gas Filter); 19. Coolant Bleeding; 20.
Language Change; 21. Nox Sensor Reset; 22. Stop/Start Reset; 23.
Seat Calibration; 24. Delete Transport Mode; 25. Windows
Calibration; 26.AC System Relearn/Initialization; 27. High Voltage
Battery Diagnostics; 28. GPF Regeneration; 29. Camshaft/Crankshaft
Sensor Relearn; 30. Interactive Vehicle Dynamics (IVD)
Initialization Sequence; 31. Halt/Resume Transmission Adaptive
Learning; 32. Passive Anti Theft System(PATS)Functions; 33. Relearn
Vehicle Data; 34. Initialisation Of Automatic Tailgate; 35.
Initialise Power Window Regulators; 36. Seat Standardisation; 37.
Normalise Slide/ Tilt Sunroof; etc.

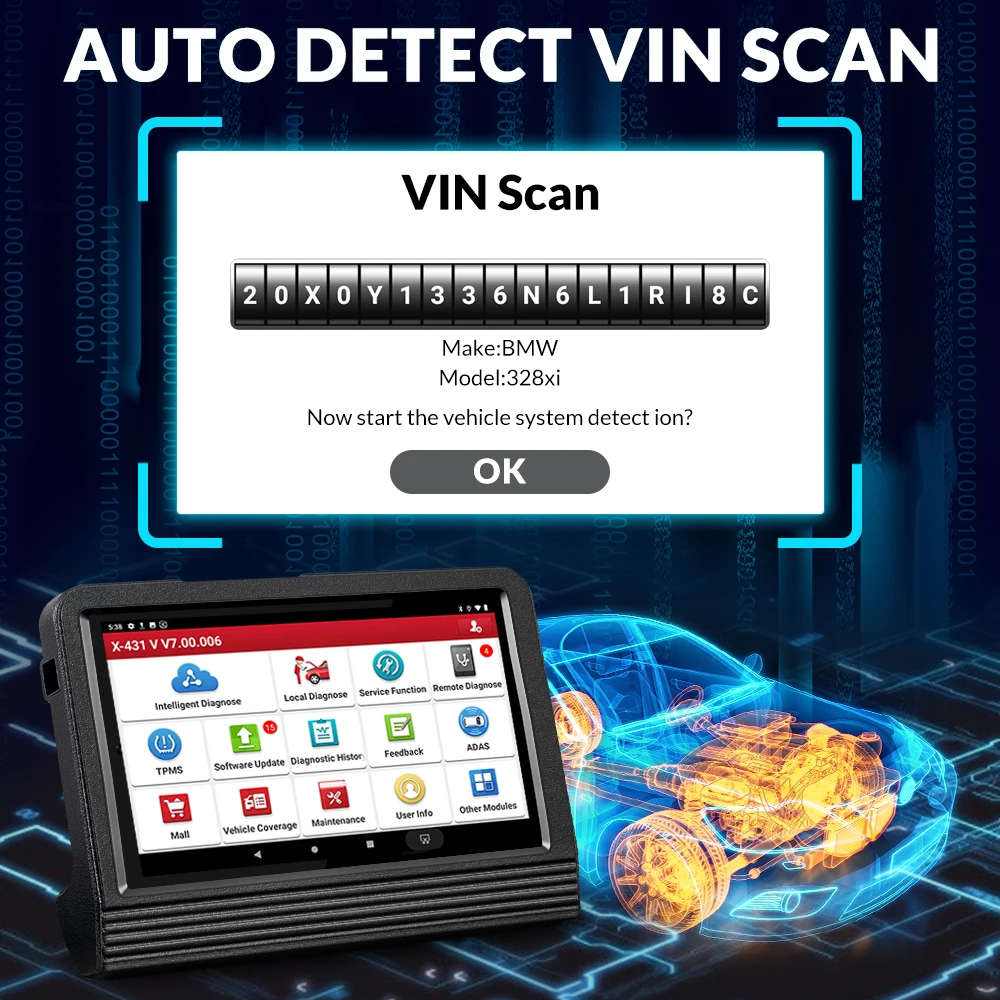

Auto VIN SCAN for Quick Diagnosis
Once this diagnostic tool and the given car are properly connected,
this diagnostic tool LAUNCH X431 V 4.0 stars auto-detected process.
With only one click, you can scan your car’s detailed version
information, also all diagnostic trouble codes and live data stream
of full electrical control units. If needed, you can only view the
diagnostic information of the selected systems in the forms of
checks.
please Note: AUTO VIN Scan is not applicable to all models , you can manually
select the vehicle model for diagnosis ( This feature is more
precise: click "Local Diagnose" to select the vehicle software )

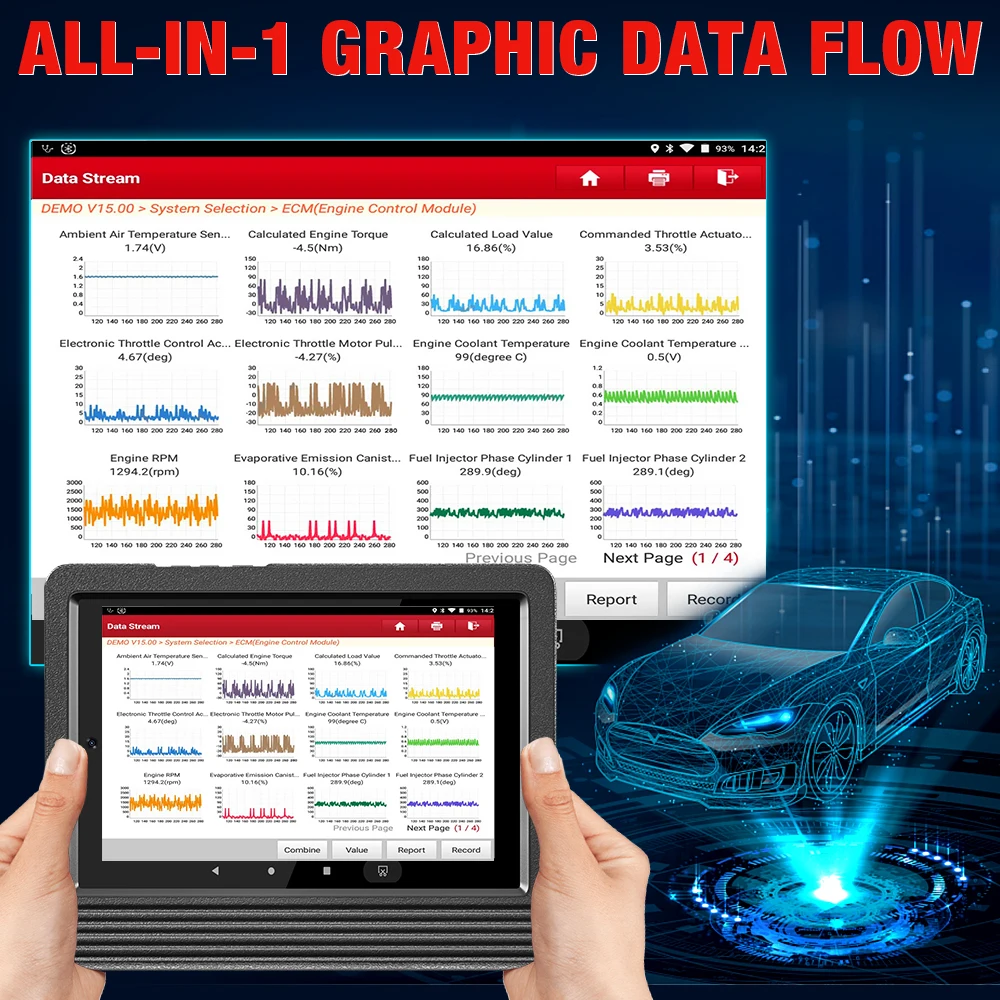

12-in-1 Live Data Stream
You can use Launch X431 V 4.0 escaner automotriz professional to
view and capture real-time Live Data, get to know the current
operating status for parameters, and provide insight into overall
vehicle performance. There are three display modes available for
data viewing: Graph, Value, and Combine. And you can display 12
data streams at the same time, providing great convenience for
comparing data.
AutoAuth for FCA SGW
Fiat Chrysler Automobiles (FCA) implemented a secure gateway module
that was introduced on a selection of their 2018 and newer model
vehicles. Access to diagnostic functions requires registration and
authentication through AUTOAUTH for scan tools. You can directly
log AUTOAUTH account on X431 V+ 4.0 bidirectional scan tool and
process diagnostics for FCA vehicles seamlessly.
FCA account requires purchase link
https://www.technicalinformation.fiat.com/tech-info-web/web/index.do
LAUNCH X431 V 4.0 is compatible with more module functions
LAUNCH X431 TSGUN: Perform all professional TPMS diagnostics and
maintenance functions such as activating sensors, performing TPMS
relearn, programming Launch Sensors, monitoring TPMS health status,
etc.
LAUNCH BST360 Battery Tester: Connecting with this battery tester,
X431 V 4.0 is endowed with battery diagnostic features such as
battery health test, start system test and charging health test,
etc., which help you to detect battery-related issues of vehicles
accurately and timely.
LAUNCH VSP600 Videoscope: Make X431 V 4.0 a perfect tool for
viewing and capturing video and still images of hard-to-reach
areas.
LAUNCH X431 PROG3: Achieve diagnostic functions such as vehicle k
ey, Engine, and gearbox programming for various vehicles.
X431 ADAS Moblie/ADAS PRO: Calibrate a wide range of camera-based &
radar-based driver assistance systems.
LAUNCH X431 Wi-Fi Printer: X431 V 4.0 can be connected to WIFI
printers to print out diagnostic data or reports.
Extensive Vehicle Coverage - 10000+ Cars supported:
Aisa: Compatible with Changcheng, Daewoo, Huachen, Zhongxing,
Indian T-a-t-a, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong,
Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota,
Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian
Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra,
Nissan, Xiali, Zhongshun, T-a-t-a, Changhe, China GM, Saicmg,
Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru,
Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm, ect...
Europe: Compatible with Vaz, Porsche, Maserati, BMW, Seat, VW,
Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land
Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR,
ect...
USA: Compatible with Gm, USAFord, Chrysler, Willy; ect...
Australia: Compatible with Austford, Holden; ect...
Brazil: Compatible with BX Fiat, BXGM, ect...
Humanized Design

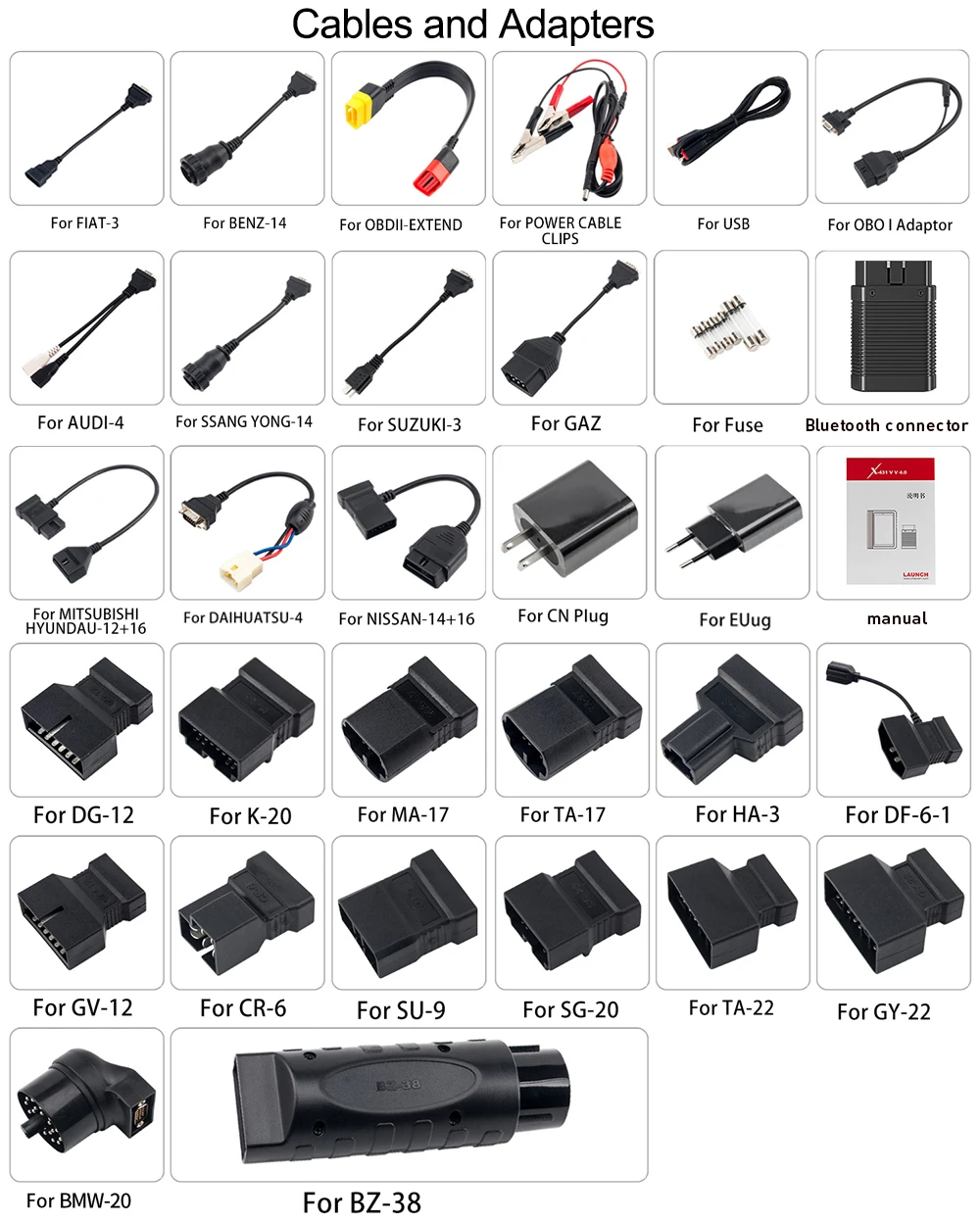

Equipped with DBSCar IV connector as standard, which can be
directly inserted into the slot of the host connector, easy to use
and not easy to be lost.
CPU: 2.0 GHz Quad-Core
OS: Android 9.0
RAM: 3GB
ROM: 32GB(can up to 128GB)
Display: 8INCH 1280*800 Resolution
Camera: 2MP(Front), 5MP(Rear)
Wi-Fi: 2.4GHz/5GHz (Dual frequency)
Test Voltage: DC 9~18V
