OBDSTAR DC706 ECU Tool Full Version with MP001 Set for Car and
Motorcycle ECM & TCM & BODY Clone by OBD or BENCH
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU
flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset
ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
It's all by OBD or bench mode and makes ECU cloning easy.
With MP001 Set to read/write Simos 18 or more ECUs.
Package Contains:
OBDSTAR DC706 ECU Tool Full Version and
MP001 Programmer Set
OBDSTAR DC706 Full Version with MP001 Set Highlights:
1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate
mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM,
DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU
manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode
13. Please check
OBDSTAR DC706 Full Version Support List
14. One Year Free Update Onine
15. DC706 ECU Tool Full Version supports Indian TA TA and Mahindra
(Check in V30.41 ECM software)
16. Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU
17. MP001 fully supports read/write, clone, data processing functions for
automotive, commercial vehicle, new energy vehicle, motorcycle,
marine (jet-ski).
18. MP001 covers all the function of P003+ and has more SlMOS 18 than P003+ (
because the boot mode of SlMOS 18 is very special and needs more lO
ports to be supported, P003+ has 4 lO ports and can't support it),
and since MP001 has up to 12 lO ports, it can meet all future ECM
requirements.
Notice:
1. Our Distributor Code: 0086A002
2. Not support DQ250 before Year 2008 with the old protocol
OBDSTAR DC706 Functions:
1. ECU Clone/ All by OBD or Bench
2. ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti
Marelli, Siemens...)
3. ECM clone for motorcycles (Bosch, Delphi, EFI...)
4. TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico,
Siemens, Temic, ZF...)
5. Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR,
PSA, SMART, VOLVO...)
Supported ECU Manufacturers:
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
Supported Brands:
Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycle:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA

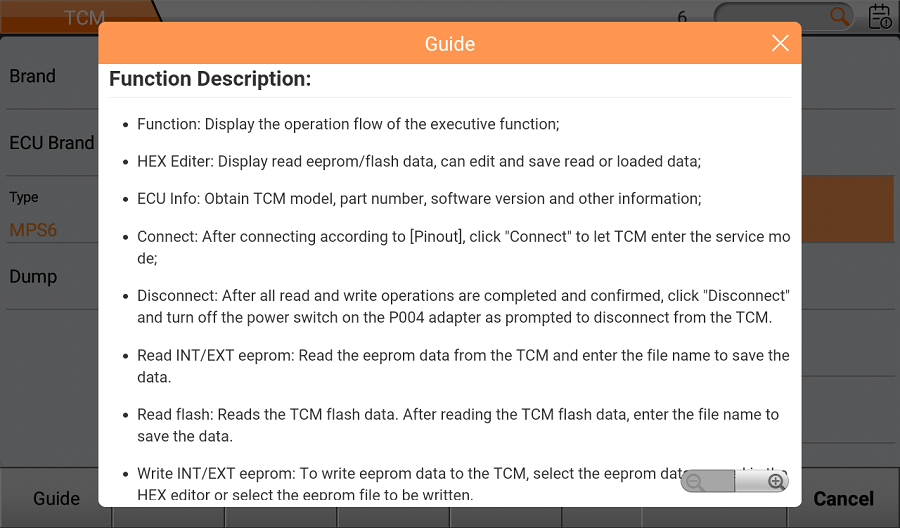

OBDSTAR DC706 Function Display:
1) Main Page/Brand Supported
2) ECM Clone for Cars
3) ECM Clone for Motorcycles
4) TCM Clone

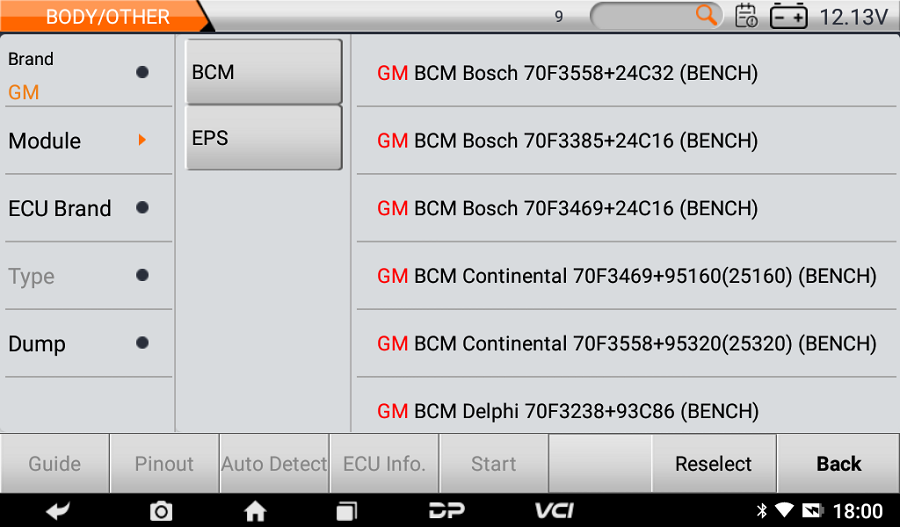

5) Body/Other Clone
OBDSTAR MP001 Set(MP001 Programmer+C4-01Host + W004/W005/W006/ECU
Bench Jumper Advantages:
1. MP001 is the latest multifunctional programmer developed by
OBDSTAR, which fully supports read/write, clone, data processing
functions for automotive, commercial vehicle, new energy vehicle,
motorcycle, marine (jet-ski).
2. MP001 covers all the function of P003+ and has more SlMOS 18
than P003+( because the boot mode of SlMOS 18 is very special and
needs more lO ports to be supported, P003+ has 4 lO ports and can't
support it), and since MP001 has up to 12 lO ports, it can meet all
future ECM requirements.
Package Includes:
1pc x DC706 full Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
1pc x OBDSTAR MP001 Programmer
1pc x OBDSTAR C4-01 Host
1pc x W004 Read/Write soldering wire
1pc x W005 Read/Write soldering wire
1pc x W006 Clock frequency wire
1pc x OBDSTAR ECU Bench Jumper
