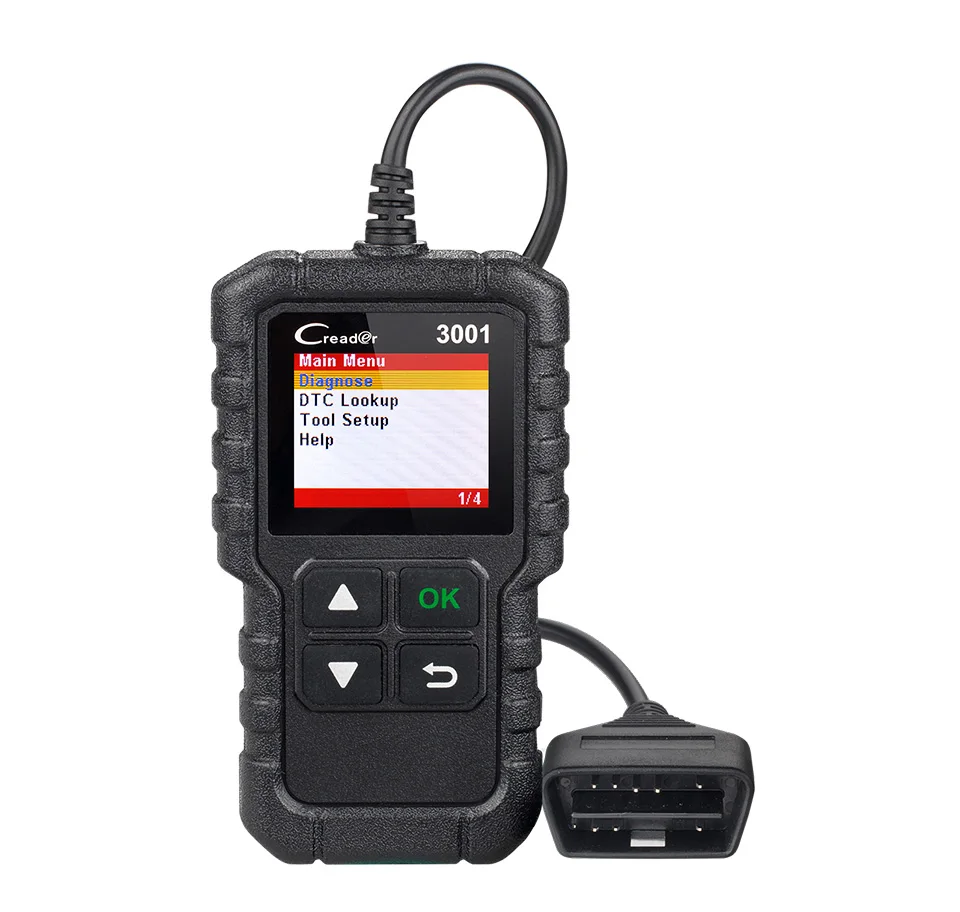

Product Introduction:
CReader 3001 provides full OBDII/EOBD diagnostic functions and
meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and
ISO15765-4
Support Full 10 Engine System Functions
Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets
monitors.
Data Stream:Reads and displays live ECU/PCM data stream, plotting functions
graphically and stores freeze frame data.

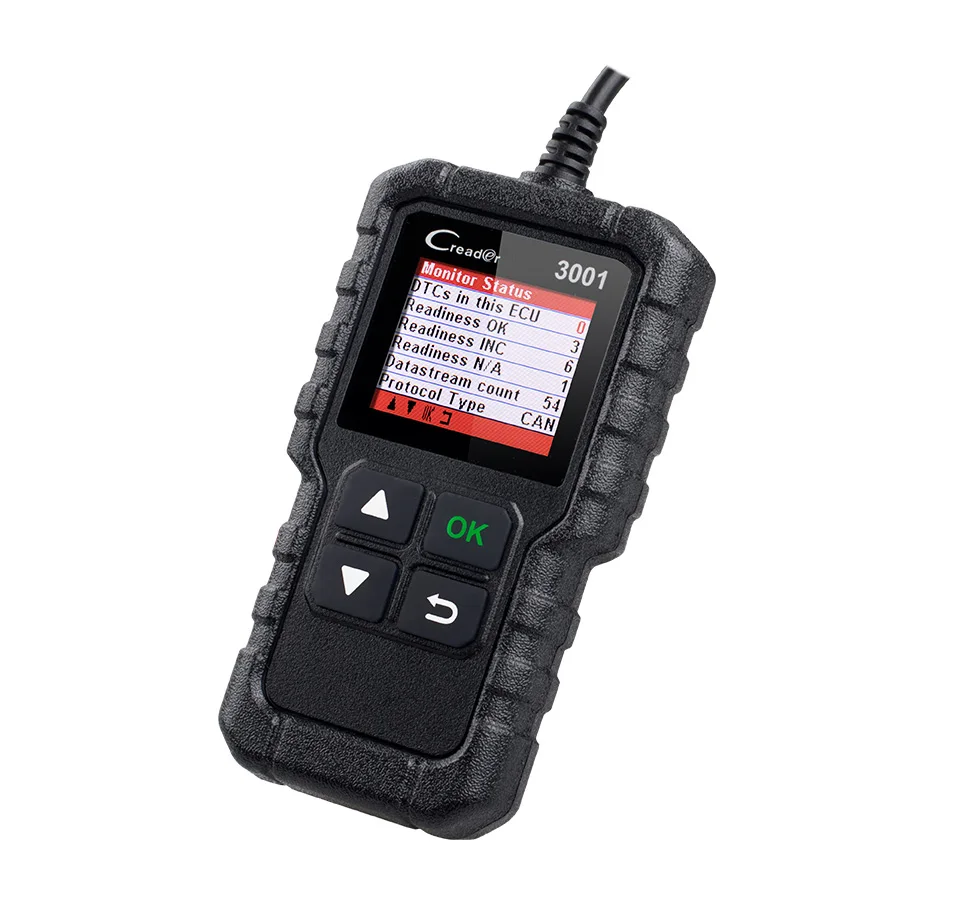

I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle
are operating properly and are ready for inspection and maintenance
testing.

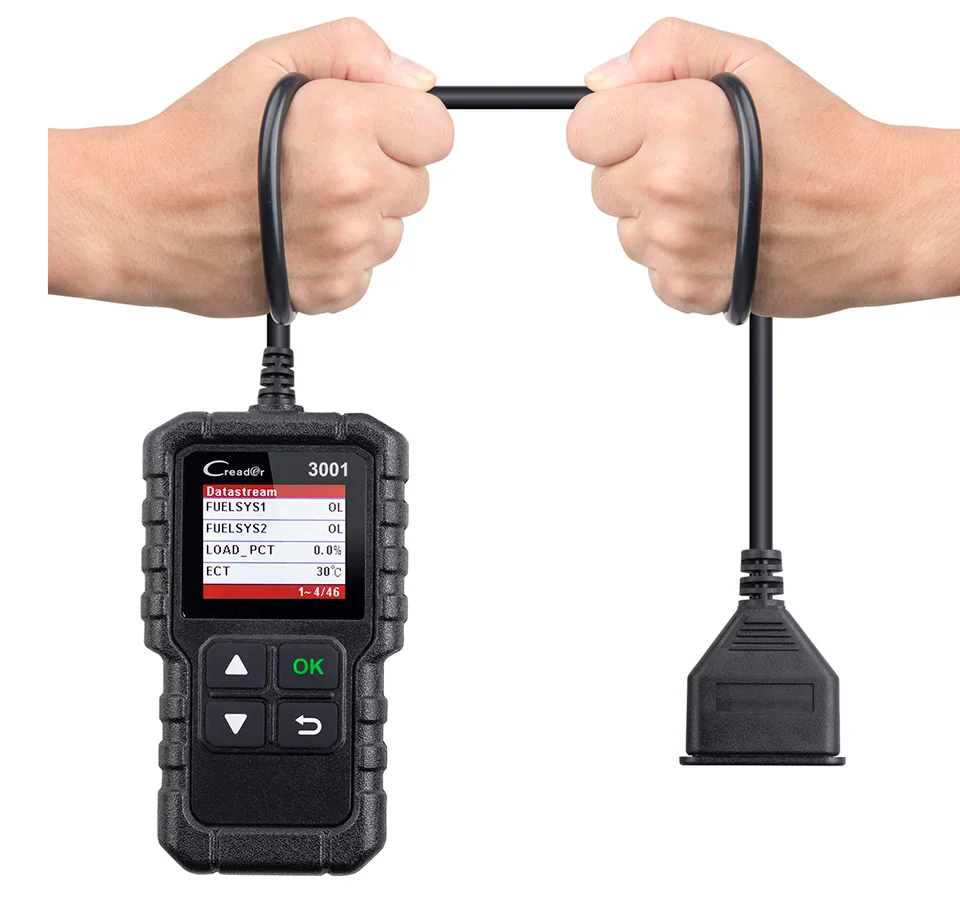

Read Live Data Stream:Show the information of continuous data stream from a vehicle in
live graphic (waveform) display.
View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the
on-board computer at the time the emission-related fault occurs.
O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for
the most recently performed tests from the vehicle’s on-board
computer.
On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain
components and systems.
Read Vehicle Information:Display the information such as VIN (Vehicle Identification
Number), CID (Calibration ID) and CVN (Calibration verification
number), etc.
Component Test:Certain vehicle components can be actuated by commands sent from
the scanner to test their operability
Support OBD 2 protocols car : (must be OBD2 porotocols car )
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
Multi-Language:English , French , Russian , Spanish ,German, Italian ,Portuguese
| Specifications: |

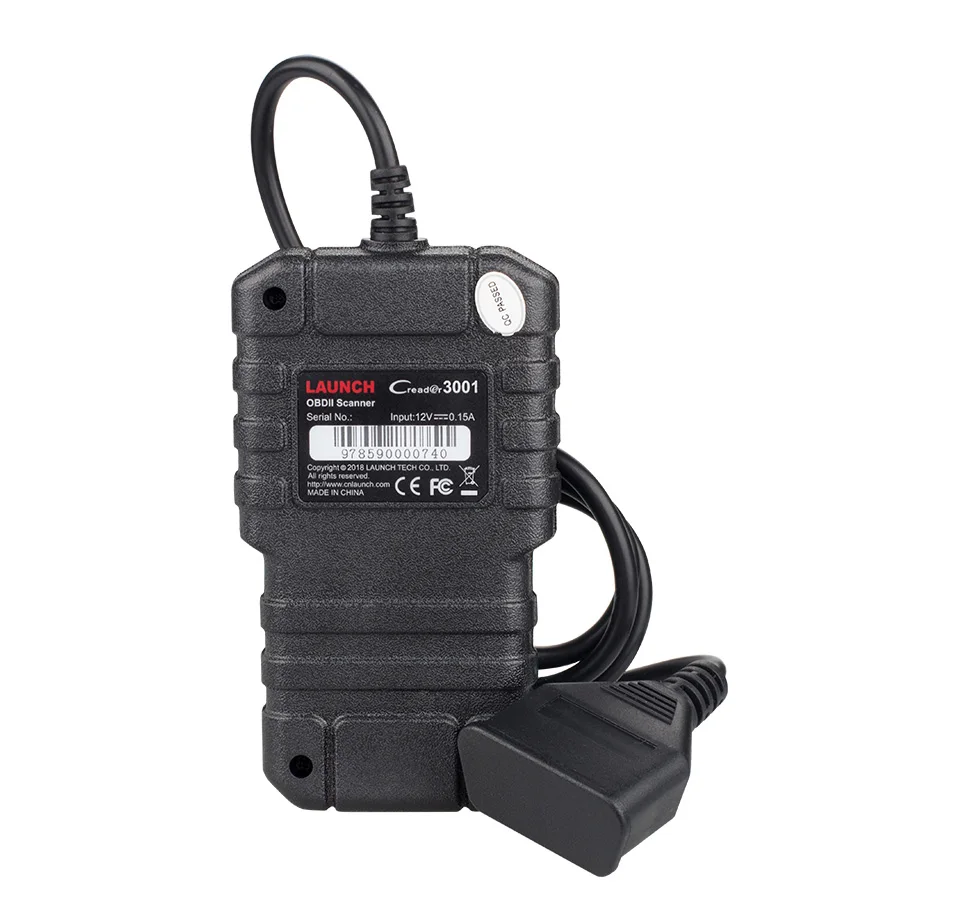

Screen: 1.77"TFT, 160*128dpi Voltage Range: 9-18V Operating Temperature :0℃-50℃(32℉-122℉) Environment Temperature:-20℃-70℃(-4℉-158℉) Dimension :118mm*68mm*22.3mm(4.65"*2.68"*0.88") Weight: <200g |
Support car models for OBDII diagnostic function:
American Car :
Need Standard OBD2 Cars from 2000 to now
for Chrysler , for Ford, for GM, For Jeep ...
European Car :
Need Standard OBD2 Cars from 2003 to now
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat
, for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Land Rover ,
for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for
VW , for Ford , for Jaguar...
Japanese Car:
Need Standard OBD2 Cars from 2006 to now
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for
Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki,
for Toyota...
Chinese Car:
Need Standard OBD2 Cars from 2009 to now
NOTE:Even though it compatible with most cars, but different regions
support the vehicle OBD2 protocol at different times, or some car
is spercial design, so it may not compatible with some cars which
do not support OBD2 protocol
