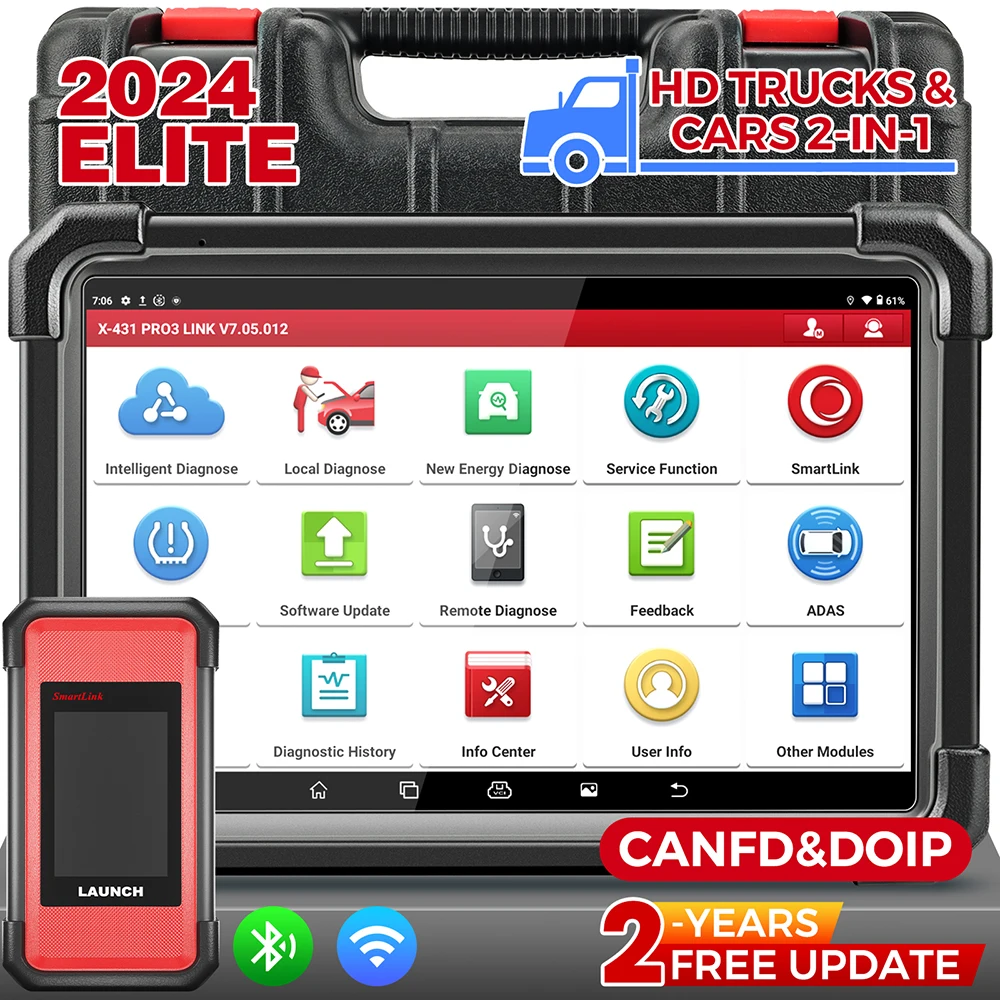

New Arrival - X431 PRO3S+SmartLink HD, Support 12V Car and 24V
Truck
X431 PRO3S+ Link
Topology diagram device parameters host parameters
Tablet size: 10.1 inches, 1280 * 800
System version: Android 10.0
CPU version: 2.0GHz 4-core
Running memory: 4GB
Storage memory: 64GB
Battery capacity: 47880mWh (7.6 V, 6300mAh)
Camera: rear 800W
WiFi network: 2.4GHz, 5GHz dual frequency
Plate size: 274 * 190.5 * 40.5mm
Packaging size: 450 * 333 * 396mm
Total weight of the product: 12.5KG
Charging power: 5V 5A (25W)
SMARTLinkC diagnostic box
CPU dual processor Cortex-A7+Cortex-M7
Memory: 256M
ROM: 8GB
WIFI: 2.4/5.0GHz
Working temperature: 0-50 ℃
Display screen: 3.97-inch TFT screen
Resolution: 320x480
External interface: USB Type B/RJ45/OBD II-16/DC-IN
Size: 204x110x45 (mm)
Multi-Language Supported
English, French, Spanish, German, Russian, Korean, Japanese,
Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Czech,
Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish,
Chinese Traditiona.
All System Diagnosis , Support Topology Map
LAUNCH X431 PRO3S+ can diagnose the electronic control system of
prevailing vehicle models covering Asian, European, American and
China. Support over 10000 models , Full range car models and full
car system diagnose make itaprofessional automotive diagnostic
tool.
Full System Diagnostic Including :
ABS System, Engine System, SAS System , TPMS System , IMMO System ,
Battery System, Oil Service System, SRS System, DPF System, Air
Conditioning System, Transmission System, ect...
Diagnosis functions include:
Read control unit information, Read DTCs, Clear DTCs, Read
datastream, Action test , AF Adjustment, Read frozen frame, Coding
match , initialization and More ...
ECU Coding (Online Coding)
Match, learn, or code the newly replaced ECU; Customize your car,
unfold the hidden features, or disable the annoying functions;
Reprograms the adaptive data for certain components after repairs
or replacements
Active Test (Bi-directional Control)
Actuate solenoids and actuators for active testing, send commands
to systems/components to test their working status, without using
the vehicle controls.
With SMARTLink C, SupportCAN FDDOIPJ2534
Support DolP, CAN FD and other protocols with SmartLink C connector
it is compatible with CAN-FD protocol and supports the latest For
GM vehicles manufactured after 2020. Adopts advanced CRC algorithms
to accommodate more data from 8 to 64 bytes in the CAN frame, which
runs faster than other products and reduces the risk of undetected
errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
DoIP
With Diagnostics over DoIP, diagnostics introduced over UDS are
used over TCP/IP and Ethernet. This enables much higher data rates
than with CAN. save both in terms of time and expenses in the case
of complex diagnostic tasks and flash applications. Compatible with
BMW (F&G chassis), Volvo models (2018 later), Land Rover &
Jaguar models (2017 later).
Online Repair Resources
Provide more than 200000+ vehicle models' service & repair
information, handbook, repair case and operation skill
One-Click identify VIN
Smart AutoVIN technology for fast and precise identifying vehicles
in one touch to scan ECUs, acquire vehicle info and run diagnostic
on selected systems.Quickly get your car’s information,save your
time.
Maintenance Help
Including How-to Videos, operation skills, and user manual,
Q&A, Quick start guide, etc.
ADVANCE FUNCTION: SUPPORT EXTENSION MODULES(need to buy
additionally)To diagnose car comprehensively with LAUNCH X431
PRO3S+
1. Videoscope (Mainly applied to check unseen parts of engine, fuel
tank, braking system, etc.)
|
2. TSGUN (activate all sensors, tpms relearn, program only Launch
Sensors)
|
3. X431 PRO G 3(IMMO For VAG Group Above 3.5)
|
4. X431 Heavy Duty Module (diagnose gasoline vehicles & 24V Diesel
Trucks)
|
5. X431 ADAS Moblie/ADAS PRO (calibrate a wide range of
camera-based & radar-based driver assistance systems)
|
6. X431 Printer (Print out diagnostic data/ reports.) |
Special Reset Service
(NOTE:You can find 15 kinds of commonly used reset functions in the
reset menu, and other special functions in the car brand diagnostic
softwares menu)
1.Oil Lamp,Oil Reset Service
This function allows you to perform reset for the engine oil life
system, which calculates an optimal oil life change interval
depending on the vehicle driving conditions and climate.
2.Electronic Parking Brake Reset
is important in the maintenance of electronic braking system's
safety and efficiency.
3.Steering Angle Calibration
helps clear the fault steering angle sensor memories and plays an
important role in the steering angle sensor calibration.
4.ABS Bleeding
This function allows you to perform various bi-directional tests to
check the operating conditions of Anti-lock Braking System (ABS).
5.Tire Pressure Monitor System Reset
This function allows you to quickly look up the tire sensor IDs
from the vehicle’s ECU, as well as to perform TPMS replacement and
sensor test.
6.Gear Learning
The scan tool monitors certain camshaft position sensors signals to
determine if all conditions are met to continue with the procedure
for Engine running
7.IMMO Service
it is mainly used to disable the lost vehicle keys and program a
new replacement key fob.
8.Injector Coding
Leaking injectors and some dead injectors can be missed even when
an injector is disabled. Otherproblems with the ignition system and
mechanical components also may not show an rpm loss when aninjector
is turned off
9.Battery Maintenance System Reset
allows the scan tool to evaluate the battery charge state, monitor
the close-circuit current, register the battery replacement, and
activate the rest state of the vehicle.
10.Diesel Particulate Filter (DPF) Regeneration
specially works for Diesel Particulate Filter system with DPF
regeneration, DPF component replacement teach-in and DPF teach-in
after replacing the engine control unit.
11. Electronic Throttle Position Reset
This function enables you to make initial settings to throttle
actuators and returns the “learned” values stored on ECU to the
default state. Doing so can accurately control the actions of
regulating throttle (or idle engine) to adjust the amount of air
intake.
12.Gearbox Matching
(1). This function can complete the gearbox self-learning to
improve gear shifting quality.
(2). When the gearbox is disassembled or repaired (after some of
the car battery is powered off), it will lead to shift delay or
impact problem. In this case, this function needs to be done so
that the gearbox can automatically compensate according to the
driving conditions so as to achieve more comfortable and better
shift quality.
13. AFS (Adaptive Front-lighting System) Reset
This feature is used to initialize the adaptive headlamp system.
According to the ambient light intensity, the adaptive headlamp
system may decide whether to automatically turn on the headlamps,
and timely adjust the headlamp lighting angle while monitoring the
vehicle speed and body posture.
14. Sunroof Initialization
This function can set the sunroof lock off, closed when it rains,
sliding / tilting sunroof memory function, temperature threshold
outside the car etc.
15.Suspension Calibration
(1)This function can adjust the height of the body.
(2) When replacing the body height sensor in the air suspension
system, or control module or when the vehicle level is incorrect,
you need to perform this function to adjust the body height sensor
for level calibration.
And more....
Passenger cars ( Gasoline and Diesel)
- European car
for ABARTH, for ALFA ROMEO, for AUDI, for BENTLEY, for BMW, for
BUGATTI, for CITROEN, for DACIA, for EUROFORD, for FERRARI, for
FIAT
, for GAZ, for OPEL(SOUTHAFRICA), for IVECO, for JAGUAR, for
LAMBORGHINI, for LANCIA, for LANDROVE, for MASERATI, for MAYBACH,
for MERCEDES, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for
RENAULT, for ROLLSROYCE, for ROVER, for SAAB, for SEAT, for SKODA,
for SMART, for SPRINTER, for SPRINTER, for VAUXHALL, for VAZ, for
VOLVO, for VW...
-USA Car
for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, for DODGE,
for FIAT(BRAZIL), for FORD, for FORD(AUSTRALIA), for GM, for JEEP,
for LINCOLI...
- Asian cars
for ACURA, for DAEWOO, for DAIHATSU, for HM, for HOLDEN(AUSTRALIA),
for HONDA, for HYUNDAI, for IKCO, for INFINITI, for ISUZU, for KIA,
for LEXUS, for LUXGEN, for MAHINDRA, for MAHINDRA(INDIAN), for
MARUTI, for MARUTI(INDIAN), for MAZDA, for MITSUBISHI, for NISSAN,
for GTR(NISSAN, for PERODUA, for PERODUA(MALAYSIA, for PROTON, for
PROTON(MALAYSIA, for SAMSUNG, for SAIPA, for SSANGYONG, for SUBARU,
for SUZUKI, for T-A-T-A, for T-A-T-A(INDIAN, for TLISUZU, for
TOYOTA, for UNITED PAKISTAN...
- Chinese cars
for BRILLIANCE, for BYD, for CHANGA, for CHANGHE, for CHBUICK, for
CHERY, for CHANGHE SUZUKI, for DFCIROEN, for ECUAID, for
FAW(TIANJIN, for FOTON, for GONOW, for GWM, for HAFEI, for HAIMA,
for JAC, for JIANGHUAI, for JMC, for JOYLONG, for LIFAN, for
MG(SAIC, for QOROS, for MAXUS, for SPARK, for TOYOTA(CHINA, for
VENUCIA, for WULING, for XINKAI, for POLARSUN, for ZX AUTO, for
ZOTYE...
Commercial vehicles
- Truck
, for MERCEDESBENZ, for CREDO, for DAF, for DFL, for ERF, for FAW,
for FORD, for FOTON, for FREIGHTLINER, for BREMACH, for FUSO, for
ASHOK LEY LAMD, for HD-DEMO, for HINO, for HYUNDAI, for
INTERNATIONAL, for IRIS BUS, for ISUZU, for IVECO, for JAC, for
JMC, for KENWORTH, for MACK, for MAN, for RENAULT, for SCANIA, for
SINOTRUK, for STERLING, for T-A-T-A, for UD, for VOLVO, for WESTERN
STAR, for MAXXFORCE, for JOHN DEER, for BENDIX...
- BUS
for MERCEDESBENZ, for BONLUCK, for GOLDENDRAGON, for ASHOK-LEY
LAND, for DEMO, for HIGER, for HINO, for HYUNDAI, for IRIZAR, for
ISUZU, for MAN, for NEOPLAN, for RENAULT, for SETRA, for SITCAR,
for SUNLONG, for SUNWIN, for VOLVO, for ZHONGTONG...
- Engineering vehicle
for MERCEDESBENZ, for CATERPILLAR, for DEMO, for MACHINERY, for
HINO, for ISUZU, for VOLVO...
