Xtruck x003 Plus is a Professional Truck Diagnostic Tool For Reading And Clearing
Fault Codes, Dpf Regeneration Test.
>Supported Platforms: Android 6.0V , IOS 11.0V , Windos And Higher System Version
>Connection Method: Bluetooth 5.1 v and USB
>Supported Diagnostic Systems: For Volvo Cummins Scania
>Language : English, Russian, Chinese( According to the language before downloading the software, and then
automatically download the corresponding software installation
package.)
>How To Get The App: Android and ISO can scan QR code to download.
>Pc Port:Please Contact The Distributor
Why Choose Xtruck x003 Bluetooth Obd2 Scanner?
*Exclusive Free App: Xtruck x003 Obd Ii App Has An Exclusive App Developed In-House, The
Latest Vehicle Data
*Full Obd2 Function: Not Only Accurately Determine The Code And Possible Cause, Also
Supports Engine Related, Brake Related, Fault Alarm, Air Intake,
Fuel Related Coolant Level.
*Stable Connection: It Is Not Only Compatible With Android And Ios, But Also Adopts
The Latest Bluetooth 5.1 Solution, Which Allows The Product To
Instantly Connect To The Vehicle's Obd Interface Via Bluetooth,
Making It Easier To Read Ecu Data, Greatly Improving The User
Experience.
*Special Function--DPF Regeneration Test
The Dpf Regeneration Fault Light Can Be Divided Into The Following
Situations According To Its Lighting Mode
1. Constantly On: Dpf Is Slightly Blocked, Increase The Vehicle
Speed, Or Perform Parking Regeneration Operation:
2. Flashing: Dpf Is Moderately Blocked, Perform On-Site
Regeneration,
3. Flashing And Accompanied By Engine Fault Lighting: Dpf Is
Severely Blocked, And Parking Regeneration Needs To Be Performed
Immediately.
Advanced DPF System For Heavy-Duty Trucks
Which Is Used To Clear Pm (Particulate Matter) From The Dpf Filter
Through Continuous Combustion Oxidation Mode (Such Us High
Temperature Heating Conbustion, Fuel Additive Or Catalyst Reduce Pm
Ignition Conbustion) To Stabilize The Filter Perfornance. With
Regular Dpf Maintenance, You Can Save Lots Of Dollars And Time By
Getting Your Dpf Cleaned, Restore Your Dpf To Nearly New! Avoid
Costly Replacement Of The Filters. Lower Overall Maintenance Costs.
DPF Regeneration May Be Performed In The Following Cases:
(a) The Exhaust Back Pressure Sensor Is Replaced.
(b) The Pm Trap Is Removed Or Replaced.
(c) The Fuel Additive Nozzle Is Removed Or Replaced.
(d) The Cataytic Oxidizer Is Removed Or Replaced.
(e) The Dpf Regeneration Mil Is On And Maintenance Is Performed.
(f) The Dpf Regeneration Control Module Is Replaced.
Supports 8 Obdii Test Modes
* Read Codes And Clear Codes: Read The Fault Code Within 3 Seconds And Clear The Pending Fault
Code, And Turn Off The Engine Light.
* I/M Readiness Test: The Purpose Of The Readiness Monitors Is To Test The Emission
Control Systems Of The Vehicle Itself. The Monitors Are Also Known
As Emission Monitors. Determine If Your Vehicle Is Ready For a Smog
Test.
* O2 Sensor Test: Allows You To Retrieve And View The o2 Sensor Monitor Test Result
For The Last Test Performed From The Vehicle's On-Board Computer.
* Vehicle Information: This Displays Information Such As Vin (Vehicle Identification
Number), Cid (Calibration Id), And Cvn (Calibration Verification
Number).
* Live Data Stream: Reads Abundant Live Data Stream And Freeze Frame Data To Monitor
The Operating Status Of The Vehicle, Including The Status Of The
Fuel System, Engine Coolant Temperature, Rpm And Various Sensor
Parameters.
* Dtc Lookup: The Device Has a Built-In, Up-To-Date Obd-Ii Dtc Library. After
You Enter The Fault Code And Select The Car Make, The Definition
And Possible Causes Are Displayed So You Know What The Problem Is
And May Be Able To Fix It Yourself.
SPECIAL FEATURES YOU SHOULD KNOW
Customized Dashboard: You Can View Various Types Of Live Data, Including Rpm, Vss, Ect,
Maf, Tp, Load-Pct, Sparkadv, Iat, Vpwr, Engine-Related Data
Streams, Etc, Which Inform You About The Operating Status Of Your
Vehicle. Also, You Can Customise The Dashboard As Per Your
Requirement.
Performance Test: Vehicle Performance Testing Plays An Important Role In Driving
Safety. This Scanner Supports Acceleration, Braking And Sprinting
Tests, Displays The Duration Of The Test And The Changes In Speed
And Rpm In The Dashboard. a Pid Chart Is Available, Including The
Corresponding Values Rpm, Vss, Ect, Maf, Etc.
Bluetooth & USB Connection With Trucks ( Volvo ,Scania ,Cummins )
Xtruck X003 Plus Heavy Duty Truck Scanner Is The First Diagnostic
Tool To Combine Obdii 16-Pin And Green 9-Pin Interface In One
Single Unit.
(New) Technology: Xtruck X003 Plus Is The First Diagnostic Tool
That Combines 9pin And 16-Pin. It Supports Three Models ( Volvo
,Scania ,Cummins ) , No Need To Buy Another Vehicle Scanner For
Different Purposes.
Xtruck X003 Plus Supports Apple(Ios 12.0 And On) And
Android(Android 6.0 And On) Smartphones, Support The Tablet. And
You Can Use The Bluetooth & USB To Diagnose Your Vehicles.
Download Method:
Support Android/Ios Port/Pc Port
Scan Qr Code To Download
(Each Product Has a Unique Serial Number. Please Read The Product
Manual Carefully And Download The App)
User Registration Installation
After The Installation, Turn On The Ignition Switch Ofthe Vehicle
And Insert The Xtruck x003 Plus Into The Obddiagnostic Port Of The
Vehicle To Power It .
The Positions Where Obd Is Inserted Into The Vehicle
1.Under The Steering Wheel
2.The Bottom Of The Central Control Screen
3.The Lower End Of The Dashboard In The Copilot
The Ignition Device Is As Follows
Insert The Obd Port Of The Vehicle
The User Registers And Logs Into The Bound Device
1.Enter Your Email, Get The Verification Code Andclick“Register".
2.Click “Confirm" To Enter The Device Binding Interfaceclick
“Confirm"To Automatically Connect Bluetooth Toenter The Diagnostic
System.
Easy To Use

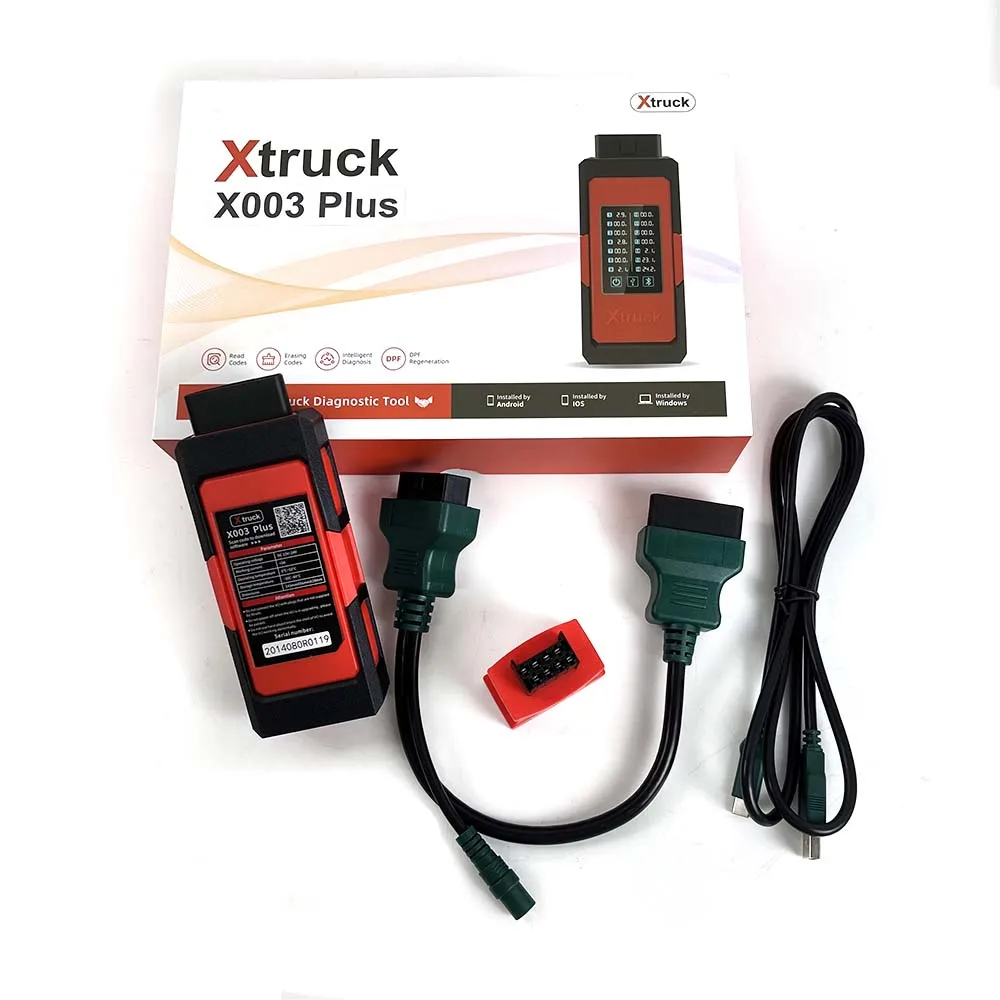

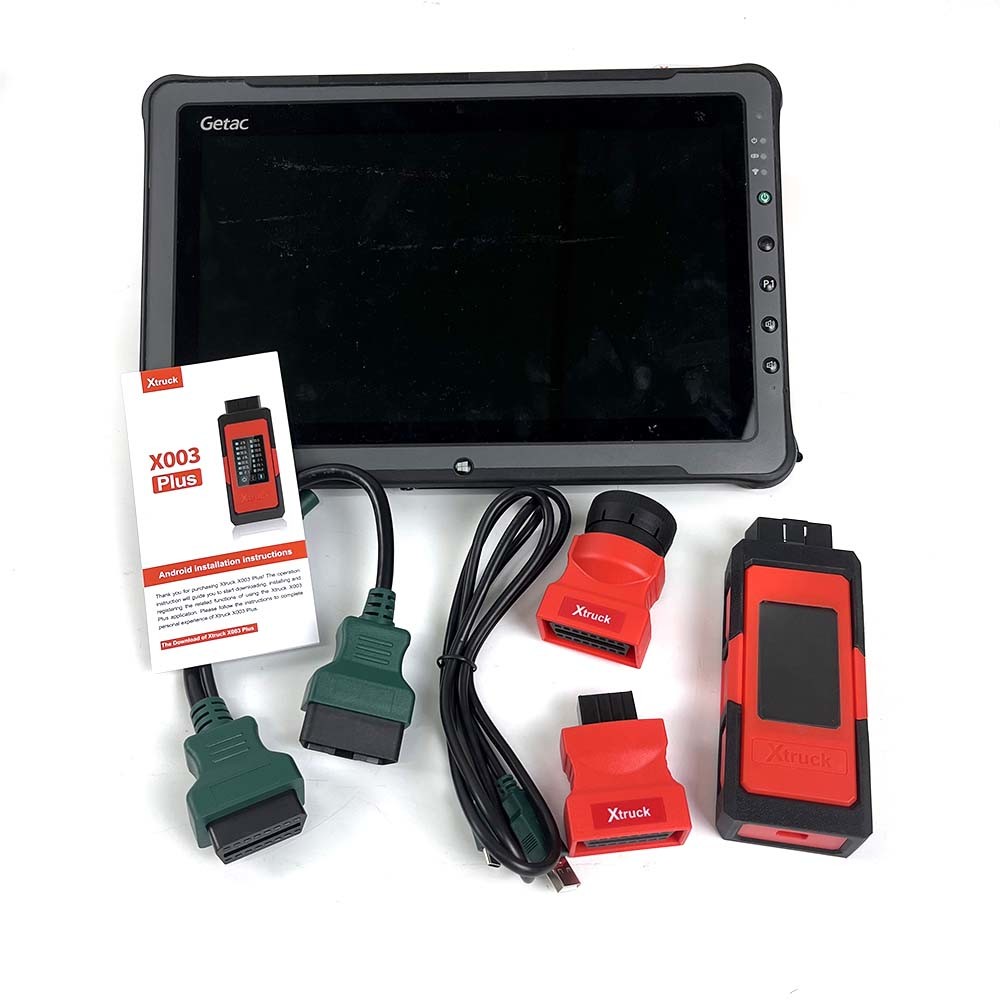

Package List :
Xtruck X003 Plus *1
Obd Cable *1
Usb Cable *1
8 Pin Adapter *1
9 Pin Adapter *1
F110 tablet*1
Notice: Scan The Qr Code To Download The Software (Refer To The Instruction
Manual)
Pc Port:Please Contact The Distributor
Please note: The software is free to use for two years
